SMS Technologies
Anti-static Self-smoothing Epoxy Resin Floor System
Project Description

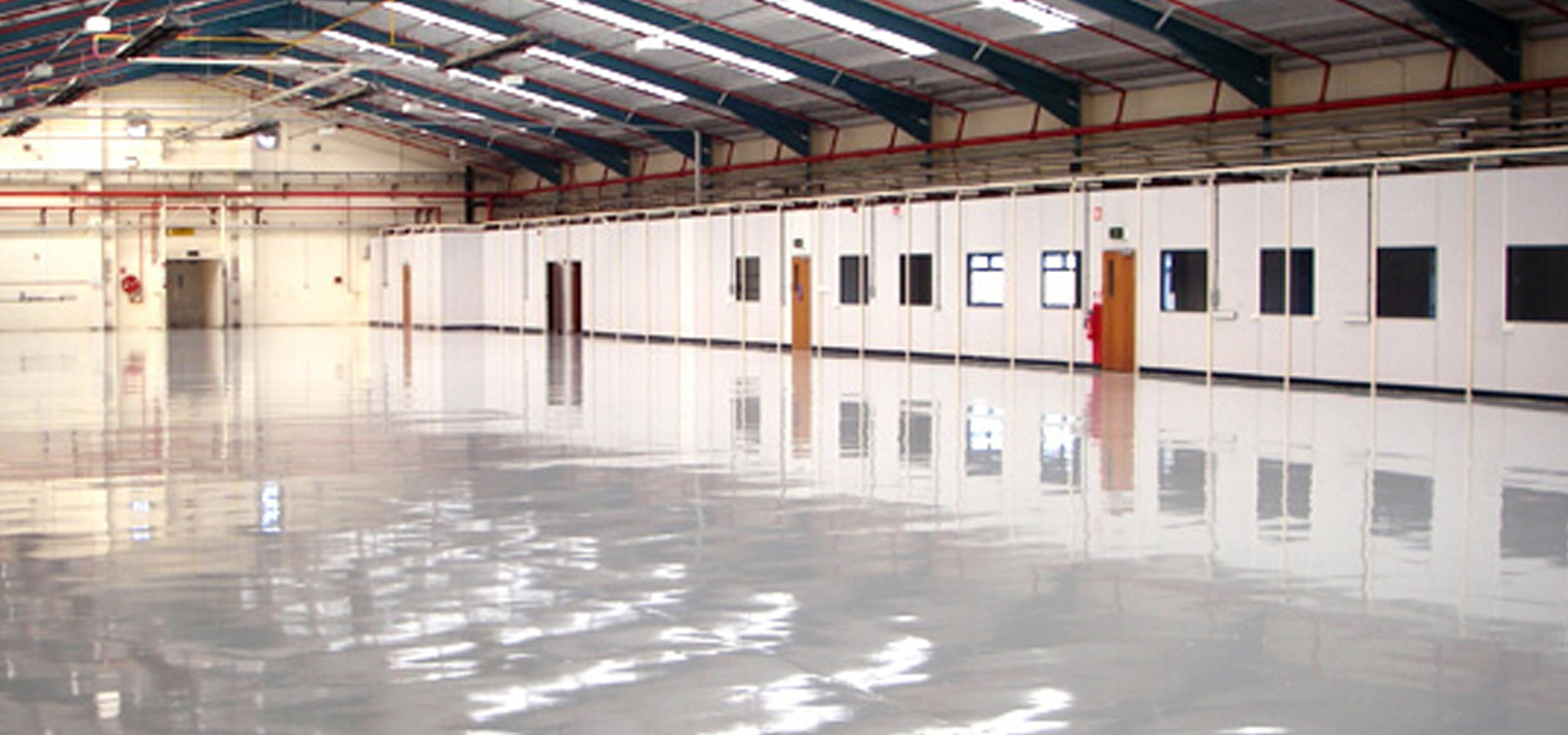

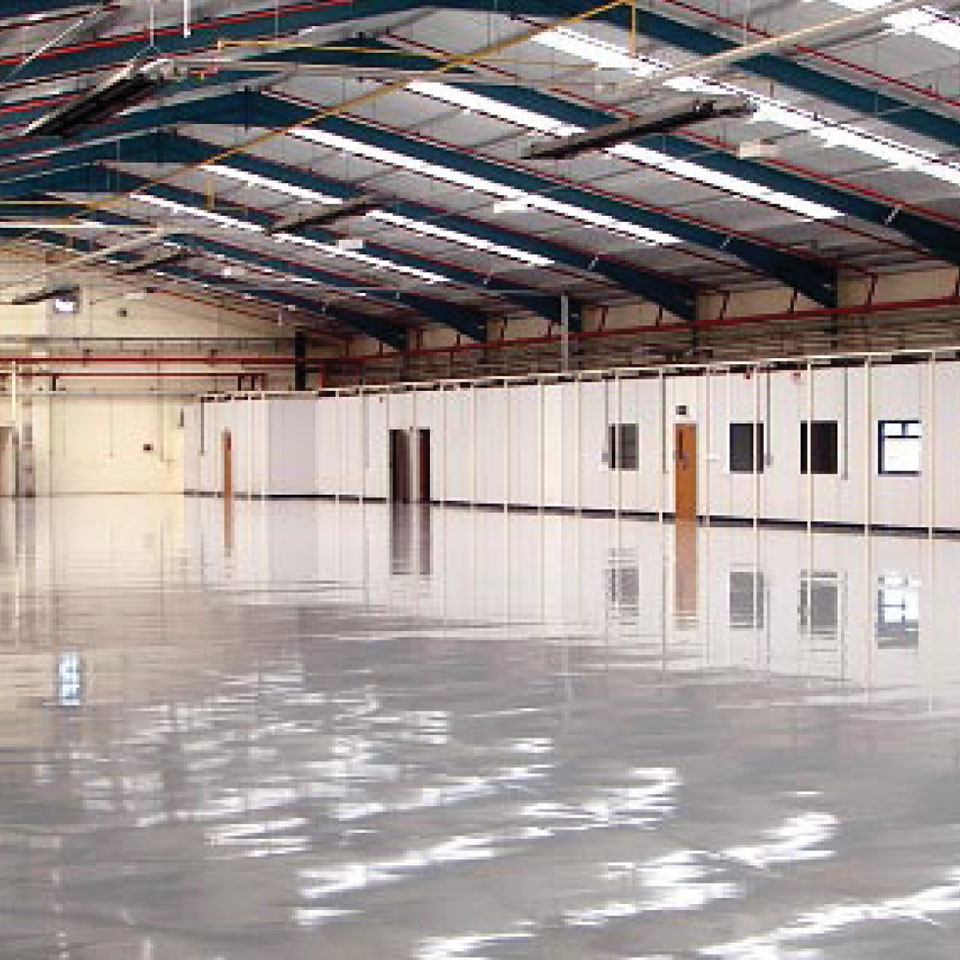

We installed Sikafloor 262AS at this electronics assembly plant in Nottingham. Sikafloor is a three-component, self-smoothing anti-static epoxy.

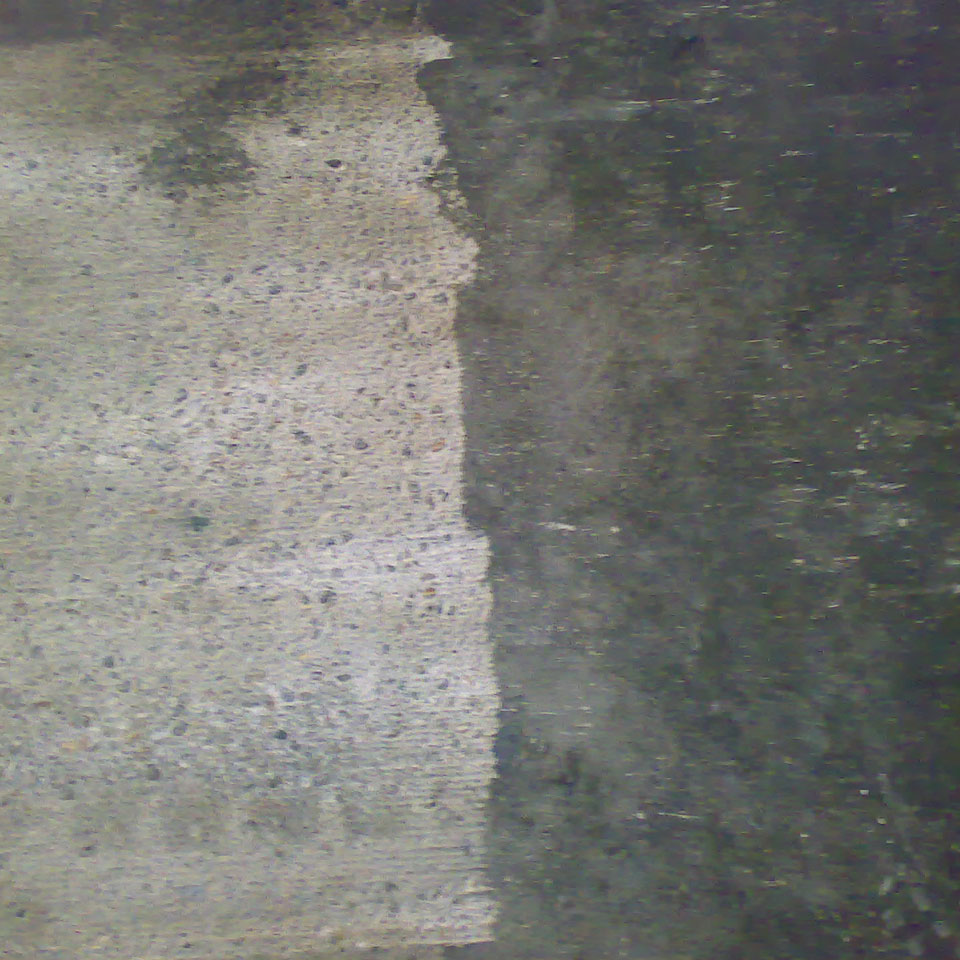

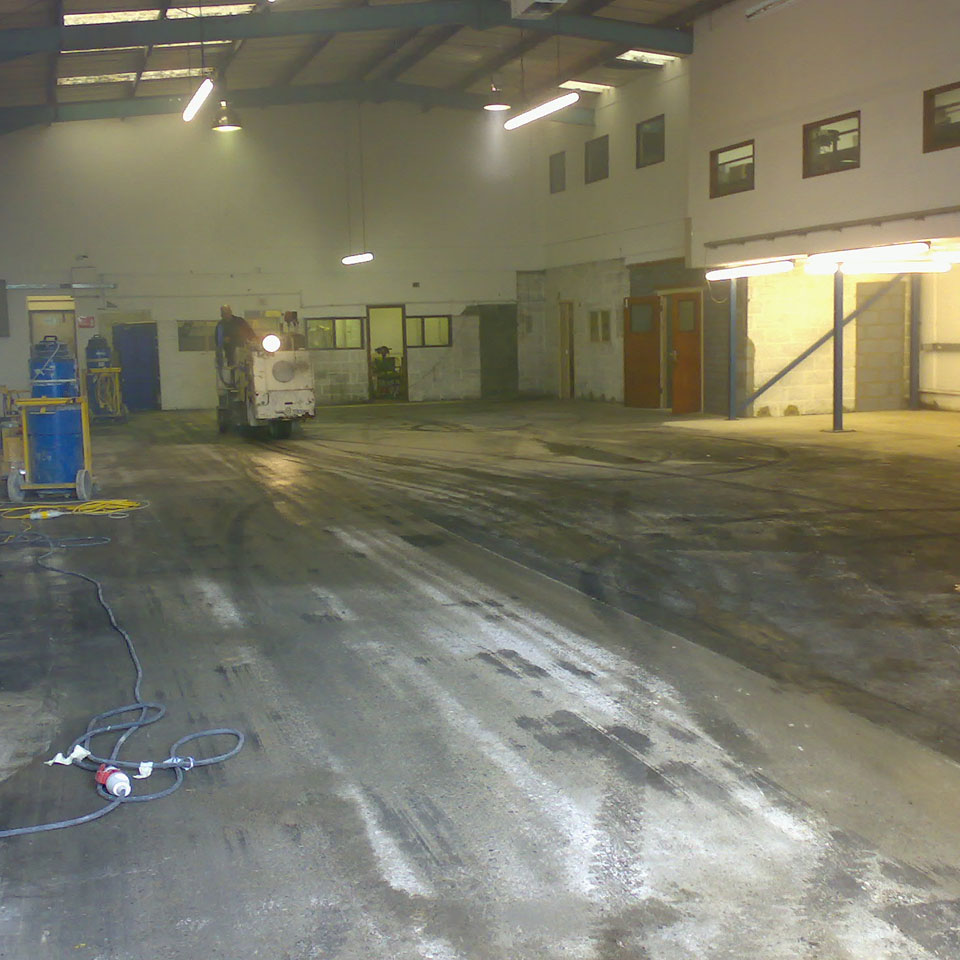

We began by removing existing vinyl tiles and mechanically eliminating layers of old latex and adhesive.
A 3mm application Skiafloor 262AS was then applied on to a layer of Sikafloor 220w conductive resin coating. This in turn was laid on to an application of Sikafloor 156 two-component epoxy primer. Earthing points and copper tape were installed between the resin applications to aid the removal of static charge to earth. All expansion joints within the substrate were then reinstated and filled with a flexible polysulphide filler.
Project Details
Resin System Anti-static Self-smoothing Epoxy Resin Floor System
Client SMS Technology
Location Nottingham
Area 1500m2 – Factory
Installation 8 days
Downloadable PDF
Click each image for an enlarged desktop view:
